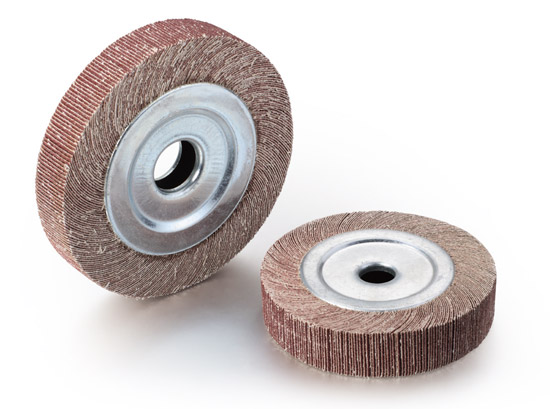

Chuck flap wheel
Time： 2016-02-22
| Applications: Applied to polishing and drawbench of different vessels workpiece, these products can revise the flaw and welding line. Features: Sharp grinding, high security, high efficiency and any shape if demanded abrasive cloth grit. |
 |  |  |
| 5:1 Standard packet assembling for a hard,aggressive abrasive mop. | 3:1 Packet assembling for a medium abrasive mop. | 1:1 Packet assembling for a very soft, highly-flexible abrasive mop. |
 |  |  |
| According to the complex workplece surface customized different lamellar to suit for different process of workpiece surfaces,make the maching effect smooth,elastic and stable. | Abrasive mop wheel, grit 40 Long continuous line pattern Minimum depression Smooth finish | Abrasive mop belt, grit 40 Short distinctive linepattern High contrast finish |
| Diameter×Width in(mm) | Grit from to | Max.RPM | Packing unit/pcs. | Packing unit/pcs. |
| 100×25 | 16 | 36-800 | 9,500rpm | 5 |
| 100×30 | 16 | 36-800 | 9,500rpm | 3 |
| 125×25 | 16 | 36-800 | 7,800rpm | 5 |
| 125×30 | 16 | 36-800 | 7,800rpm | 3 |
| 150×25 | 16, 25 | 36-800 | 6,800rpm | 1 |
| 150×30 | 16, 25 | 36-800 | 6,800rpm | 1 |
| 150×35 | 16, 25 | 36-800 | 6,800rpm | 1 |
| 150×40 | 16, 25 | 36-800 | 6,800rpm | 1 |
| 150×50 | 16, 25 | 36-800 | 6,800rpm | 1 |
| 200×25 | 25, 32 | 36-800 | 4,800rpm | 1 |
| 200×30 | 25, 32 | 36-800 | 4,800rpm | 1 |
| 200×35 | 25, 32 | 36-800 | 4,800rpm | 1 |
| 200×40 | 25, 32 | 36-800 | 4,800rpm | 1 |
| 200×50 | 25, 32 | 36-800 | 4,800rpm | 1 |
| 250×10 | 25, 32 | 36-800 | 3,800rpm | 1 |
| 250×15 | 25, 32 | 36-800 | 3,800rpm | 1 |
| 250×20 | 25, 32 | 36-800 | 3,800rpm | 1 |
| 250×25 | 25, 32 | 36-800 | 3,800rpm | 1 |
| 250×30 | 25, 32 | 36-800 | 3,800rpm | 1 |
| 250×35 | 25, 32 | 36-800 | 3,800rpm | 1 |
| 250×40 | 25, 32 | 36-800 | 3,800rpm | 1 |
| 250×45 | 25, 32 | 36-800 | 3,800rpm | 1 |
| 250×50 | 25, 32 | 36-800 | 3,800rpm | 1 |
| 300×25 | 25, 32 | 36-800 | 3,200rpm | 1 |
| 300×30 | 25, 32 | 36-800 | 3,200rpm | 1 |
| 300×35 | 25, 32 | 36-800 | 3,200rpm | 1 |
| 300×40 | 25, 32 | 36-800 | 3,200rpm | 1 |
| 300×45 | 25, 32 | 36-800 | 3,200rpm | 1 |
| 300×50 | 25, 32 | 36-800 | 3,200rpm | 1 |
