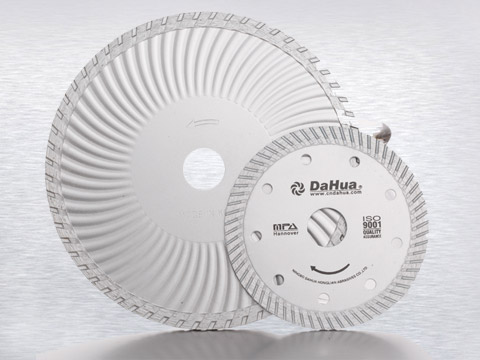

Continuous turbo saw blades
Time： 2016-02-22
Product Features: Turbo row has the merits of dry type and wet type. The unique design of segments can help cooling and cutting speed.
Product Applications: for granite, marble, masonry, concrete and other construction material.
Usage Method: dry& wet cutting.
| Item NO. | Outer diameter | (mm) Segment height | (mm) Segment thickness | (mm) Bore diameter | |
| Inch | mm | ||||
| 01DB-04 | 4″ | 105 | 8 | 2.4 | 20\22.23 |
| 01DB-043 | 4.3″ | 110 | 8 | 2.4 | 20\22.23 |
| 01DB-045 | 4.5″ | 115 | 8 | 2.4 | 20\22.23 |
| 01DB-05 | 5″ | 125 | 8 | 2.6 | 20\22.23 |
| 01DB-06 | 6″ | 150 | 8 | 2.6 | 20\22.23 |
| 01DB-07 | 7″ | 180 | 8 | 2.8 | 22.3\25.4\30 |
| 01DB-08 | 8″ | 200 | 8 | 2.8 | 22.3\25.4\30 |
| 01DB-09 | 9″ | 230 | 8 | 2.8 | 22.3\25.4\30 |
| 01DB-10 | 10″ | 250 | 8 | 3.0 | 22.3\25.4\30 |
| 01DB-12 | 12″ | 300 | 8\10 | 3.2 | 22.3\25.4\30\50 |
| 01DB-14 | 14″ | 350 | 8\10 | 3.2 | 22.3\25.4\30\50 |
